BDF-12 (24) KV/800A-3150A BDFW-24KV/800A-3150A
BDF-12 (24) KV/800A-3150A BDFW-24KV/800A-3150A
Contacts:Section manager
Tel:0086-318-3736777   0086-318-3736111
Mobile: 86-13333086669

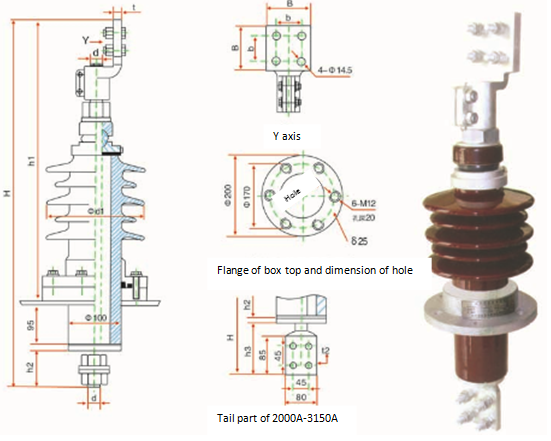

”ö Outline dimension

”ö Technical parameters and outline dimension of bush


Code

Type-Voltage/Current

KV/A

Dimensions (mm)

Shape

Creep age Distance

(mm)

Weight

Kg

H

h1

h2

d

d1

B

b

t

t2

WT.0800.12.F

BDF-12/800

610

465

38

M24

150

80

40

12


Single Umbrella

320

10.6

WT.1000.12.F

BDF-12/1000

612

465

40

M30

150

80

40

12


Single Umbrella

320

12.6

WT.1200.12.F

BDF-12/1200

617

465

45

M33

150

80

40

12

12

Single Umbrella

320

13.6

WT.2000.12.F

BDF-12/2000

727

515

105

¦µ42

150

100

50

16

14

Single Umbrella

320

17.6

WT.3150.12.F

BDF-12/3150

727

515

105

¦µ48

150

100

50

16

16

Single Umbrella

320

21

WT.0800.24.F

BDF-24/800

650

505

38

M24

160

80

40

12


Single Umbrella

340

12.7

WT.1000.24.F

BDF-24/1000

652

505

40

M30

160

80

40

12


Single Umbrella

340

13.7

WT.1200.24.F

BDF-24/1200

657

505

45

M33

160

80

40

12

12

Single Umbrella

340

14.7

WT.2000.24.F

BDF-24/2000

767

555

105

¦µ42

160

100

50

16

14

Single Umbrella

340

19.8

WT.3150.24.F

BDF-24/3150

767

555

105

¦µ48

160

100

50

16

16

Single Umbrella

340

21.7

WT.0800.24.FW

BDFW-24/800

650

505

38

M24

190

80

40

12


Big and small umbrellas

480

14.6

WT.1000.24.FW

BDFW-24/1000

652

505

40

M30

190

80

40

12


Big and small umbrellas

480

15.6

WT.1200.24.FW

BDFW-24/1200

657

505

45

M33

190

80

40

12

12

Big and small umbrellas

480

16.6

WT.2000.24.FW

BDFW-24/2000

767

555

105

¦µ42

190

100

50

16

14

Big and small umbrellas

480

21.8

WT.3150.24.FW

BDFW-24/3150

767

555

105

¦µ48

190

100

50

16

16

Big and small umbrellas

480

23.8
