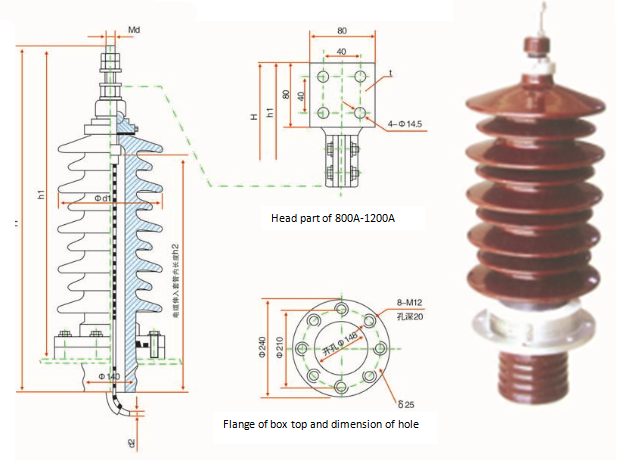

¡ö Outline dimension
¡ö Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
No of Sheds |
Creep age Distance (mm) |
Weight Kg |
|||||
|
H |
h1 |
h2 |
Md |
d |
t |
||||||
|
WT.0035.40.5.LF.1 |
BLFW-40.5/35 |
510 |
415 |
430 |
M16 |
8 |
|
Big and small umbrellas |
9 |
1100 |
22 |
|
WT.0100.40.5.LF.1 |
BLFW-40.5/100 |
510 |
415 |
430 |
M16 |
10 |
|
Big and small umbrellas |
9 |
1100 |
22 |
|
WT.0250.40.5.LF.1 |
BLFW-40.5/250 |
510 |
415 |
430 |
M16 |
20 |
|
Big and small umbrellas |
9 |
1100 |
22 |
|
WT.0400.40.5.LF.1 |
BLFW-40.5/400 |
510 |
415 |
430 |
M16 |
23 |
|
Big and small umbrellas |
9 |
1100 |
22 |
|
WT.0600.40.5.LF.1 |
BLFW-40.5/600 |
510 |
415 |
430 |
M20 |
27 |
|
Big and small umbrellas |
9 |
1100 |
22 |
|
WT.0800.40.5.LF.1 |
BLFW-40.5/800 |
705 |
610 |
430 |
M24 |
30 |
12 |
Big and small umbrellas |
9 |
1100 |
24 |
|
WT.1000.40.5.LF.1 |
BLF-40.5/1000 |
705 |
610 |
430 |
M30 |
35 |
12 |
Big and small umbrellas |
9 |
1100 |
24 |
|
WT.1200.40.5.LF.1 |
BLFW-40.5/1200 |
705 |
610 |
430 |
M33 |
40 |
12 |
Big and small umbrellas |
9 |
1100 |
26 |
|
WT.0100.40.5.LF.W.1 |
BLFW-40.5/100 |
680 |
485 |
500 |
M16 |
10 |
|
Big and small umbrellas |
11 |
1200 |
26 |
|
WT.0250.40.5.LF.W.1 |
BLFW-40.5/250 |
680 |
485 |
500 |
M16 |
20 |
|
Big and small umbrellas |
11 |
1200 |
26 |
|
WT.0400.40.5.LF.W.1 |
BLFW-40.5/400 |
680 |
485 |
500 |
M16 |
23 |
|
Big and small umbrellas |
11 |
1200 |
26 |
|
WT.0600.40.5.LF.W.1 |
BLFW-40.5/600 |
680 |
485 |
500 |
M20 |
27 |
|
Big and small umbrellas |
11 |
1200 |
26 |
|
WT.0800.40.5.LF.W.1 |
BLFW-40.5/800 |
755 |
680 |
500 |
M24 |
30 |
12 |
Big and small umbrellas |
11 |
1200 |
28 |
|
WT.1000.40.5.LF.W.1 |
BLFW-40.5/1000 |
755 |
680 |
500 |
M30 |
35 |
12 |
Big and small umbrellas |
11 |
1200 |
28 |
|
WT.1200.40.5.LF.W.1 |
BLFW-40.5/1200 |
755 |
680 |
500 |
M33 |
40 |
12 |
Big and small umbrellas |
11 |
1200 |
29 |
