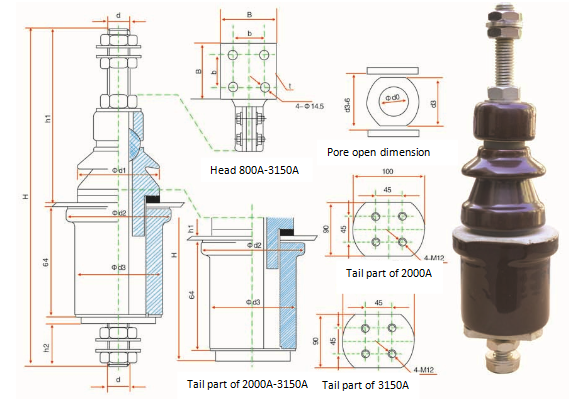

”ö Outline dimension
”ö Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
||||||||||
|
H |
h1 |
h2 |
d |
d0 |
d1 |
d2 |
d3 |
B |
b |
t |
||
|
WT.0300.FJ |
BFJ-1/300 |
225 |
132 |
25 |
M12 |
30 |
50 |
65 |
55 |
|
|
|
|
WT.0400.FJ |
BFJ-1/400 |
250 |
150 |
30 |
M16 |
50 |
75 |
95 |
80 |
|
|
|
|
WT.0600.FJ |
BFJ-1/600 |
265 |
160 |
35 |
M20 |
50 |
75 |
95 |
80 |
|
|
|
|
WT.0800.FJ |
BFJ-1/800 |
393 |
286 |
35 |
M24 |
60 |
90 |
110 |
100 |
80 |
40 |
12 |
|
WT.1000.FJ |
BFJ-1/1000 |
398 |
286 |
40 |
M30 |
60 |
90 |
110 |
100 |
80 |
40 |
12 |
|
WT.1200.FJ |
BFJ-1/1200 |
403 |
286 |
45 |
M33 |
60 |
90 |
110 |
100 |
80 |
40 |
12 |
|
WT.2000.FJ |
BFJ-1/2000 |
415 |
336 |
|
¦µ42 |
85 |
115 |
150 |
140 |
100 |
50 |
16 |
|
WT.3150.FJ |
BFJ-1/3150 |
415 |
336 |
|
¦µ48 |
85 |
115 |
150 |
140 |
100 |
50 |
16 |
