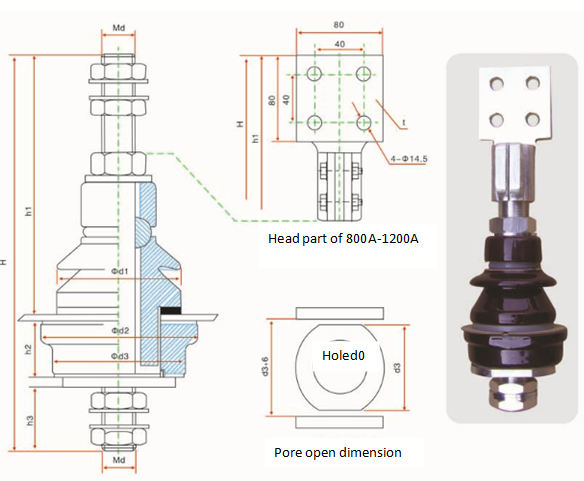

■ Outline dimension
|
aaCode |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Weight Kg |
|||||||||
|
H |
h1 |
h2 |
h3 |
Md |
d0 |
d1 |
d2 |
d3 |
t |
|||
|
WT.0300.1 |
BF-1/300 |
195 |
132 |
34 |
25 |
M12 |
30 |
50 |
65 |
55 |
|
0.6 |
|
WT.0400.1 |
BF-1/400 |
220 |
150 |
34 |
30 |
M16 |
50 |
75 |
95 |
80 |
|
1.4 |
|
WT.0600.1 |
BF-1/600 |
235 |
160 |
34 |
35 |
M20 |
50 |
75 |
95 |
80 |
|
1.7 |
|
WT.0800.1 |
BF-1/800 |
363 |
281 |
39 |
35 |
M24 |
60 |
90 |
110 |
100 |
12 |
5.1 |
|
WT.1000.1 |
BF-1/1000 |
368 |
281 |
39 |
38 |
M30 |
60 |
90 |
110 |
100 |
12 |
5.3 |
|
WT.1200.1 |
BF-1/1200 |
373 |
281 |
39 |
45 |
M33 |
60 |
90 |
110 |
100 |
12 |
6.0 |
