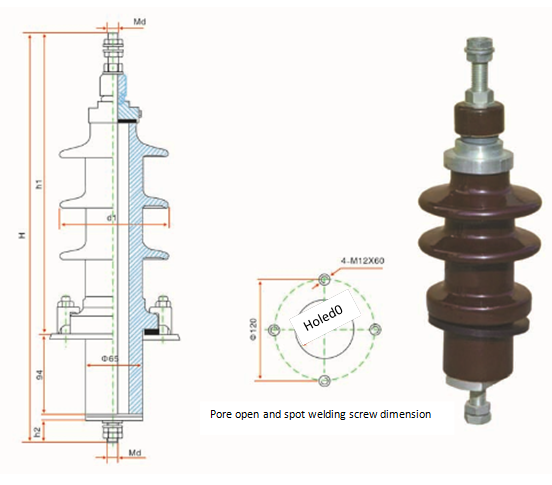

¡ö Outline dimension
¡ö Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
Creep age Distance (mm) |
Weight Kg |
||||
|
H |
h1 |
h2 |
Md |
d1 |
|
||||
|
WT.0300.10 |
BD-10/300 |
450 |
325 |
25 |
M12 |
115 |
Single Umbrella |
270 |
3.4 |
|
WT.0400.10 |
BD-10/400 |
465 |
333 |
30 |
M16 |
115 |
Single Umbrella |
270 |
3.8 |
|
WT.0600.10 |
BD-10/600 |
475 |
338 |
35 |
M20 |
115 |
Single Umbrella |
270 |
4.4 |
|
WT.0300.20 |
BD-20/300 |
490 |
365 |
25 |
M12 |
115 |
Single Umbrella |
340 |
3.7 |
|
WT.0400.20 |
BD-20/400 |
505 |
373 |
30 |
M16 |
115 |
Single Umbrella |
340 |
4.0 |
|
WT.0600.20 |
BD-20/600 |
515 |
378 |
35 |
M20 |
115 |
Single Umbrella |
340 |
4.7 |
|
WT.0300.20.W |
BDW-20/300 |
490 |
365 |
25 |
M12 |
125 |
Big and small umbrellas |
420 |
4.4 |
|
WT.0400.20.W |
BDW-20/400 |
505 |
373 |
30 |
M16 |
125 |
Big and small umbrellas |
420 |
4.7 |
|
WT.0600.20.W |
BDW-20/600 |
515 |
378 |
35 |
M20 |
125 |
Big and small umbrellas |
420 |
5.4 |
