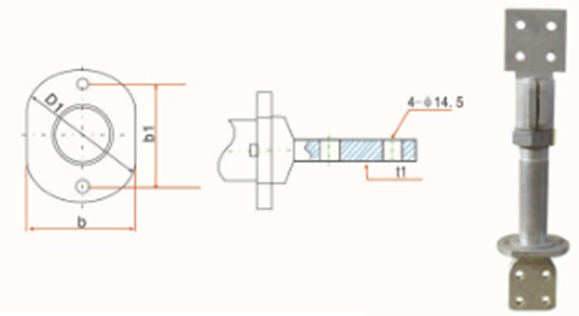

¡ö Outline dimension

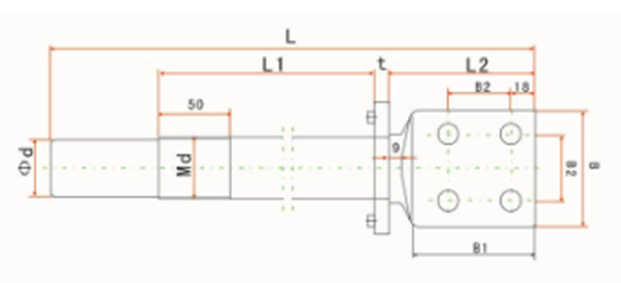

¡ö Technical parameters and outline dimension
|
Code |
Rated current A |
Dimensions (mm) |
Weight Kg |
||||||||||||
|
L |
L1 |
L2 |
t |
t1 |
Od |
Md |
D1 |
B |
B1 |
B2 |
b |
b1 |
|||
|
WT. 2000 |
2000 |
385 |
265 |
105 |
10 |
14 |
38 |
42X2 |
120 |
80 |
85 |
45 |
100 |
95 |
5. 1 |
|
WT.3150 |
3150 |
385 |
265 |
105 |
10 |
16 |
42 | 48X2 | 120 | 80 |
85 |
45 |
100 |
95 |
6.5 |
|
WT.4000 |
4000 |
445 |
310 |
120 |
14 |
18 |
48 | 52X2 | 135 | 80 |
85 |
45 |
120 |
108 |
10.5 |
|
WT.5000 |
5000 |
445 |
215 |
120 |
14 |
18 |
52 | 56X2 | 150 | 80 |
85 |
45 |
130 |
115 |
13.2 |
