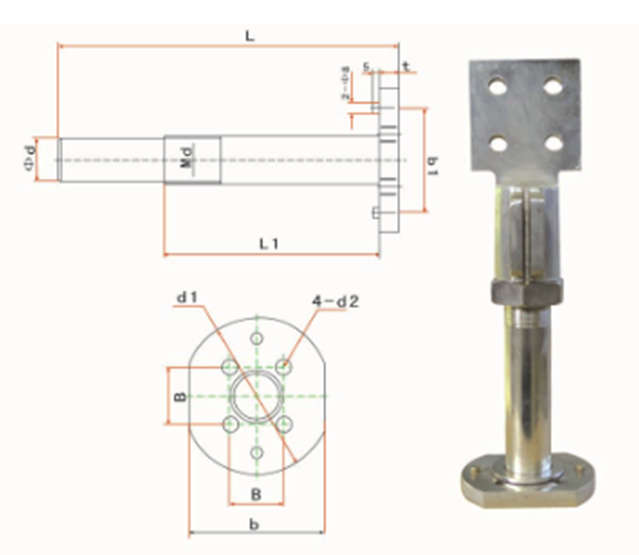

¡ö Outline dimension
¡ö Technical parameters and outline dimension
|
Code |
Rated current A |
Dimensions (mm) |
Weight Kg |
|||||||||
|
L |
L1 |
t |
Od |
Md |
d1 |
d2 |
b |
b1 |
B |
|||
|
WT. 0800. A |
800 |
245 |
170 |
12 |
21 |
24X1.5 |
85 |
M10 |
75 |
70 |
33 |
1.7 |
|
WT. 1000. A |
1000 |
245 |
170 |
12 |
27 |
30X1.5 |
85 | M10 | 75 | 70 |
33 |
2.5 |
|
WT. 1200. A |
1200 |
245 |
170 |
12 |
30 |
33X1.5 |
85 | M10 | 75 | 70 |
33 |
3 |
|
WT. 2000. A |
2000 |
275 |
180 |
16 |
38 |
48X2 |
100 | M12 | 90 | 95 |
45 |
4. 65 |
| WT. 3150. A | 3150 | 275 | 180 | 16 | 42 | 48X2 | 120 | M12 | 90 | 95 | 45 | 5. 75 |
| WT. 4000. A | 4000 | 300 | 195 | 20 | 48 | 52X2 | 135 | M12 | 120 | 108 | 55 | 7. 2 |
| WT. 5000. A | 5000 | 350 | 215 | 20 | 52 | 56X2 | 135 | M12 | 120 | 108 | 55 | 11.8 |
