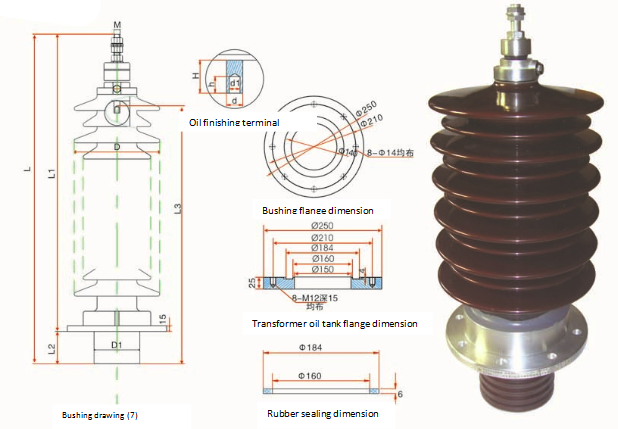

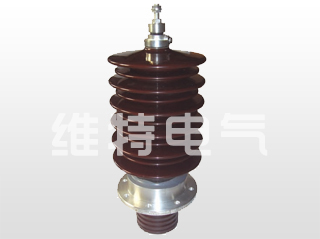

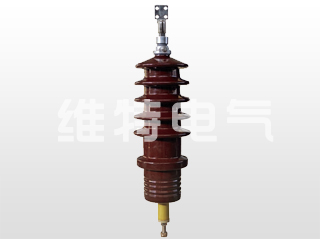

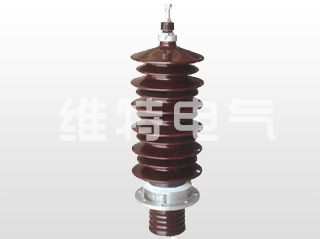

¡ö Outline dimension
¡ö Electrical property:
|
Technical Spec. |
GB/T4109-2008 |
|
|
Bush Type |
BFW-40.5/100-3L |
BFW-40.5/100-4L |
|
Dry-arc distance |
>300mm |
435mm |
|
Rated voltage |
35KV |
35KV |
|
Rated current |
100A |
100A |
|
Creep age distance |
1100mm |
1350mm |
|
Withstand voltage for frequency of 1 min |
95KV |
95KV |
|
Lightning Impulse Withstand voltage |
200KV (Peak value) |
200KV (Peak value) |
|
Bending resistance test |
>1000N |
>1000N |
¡ö Bushing technical parameters and outline dimension
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Oil Finishing terminal (MM) |
No of Sheds |
|||||||||
|
L |
L1 |
L2 |
L3 |
D |
D1 |
M |
H |
h |
d |
d1 |
|||
|
WTFTG.4069 |
BFW-40.5/100A-3L |
575 |
455 |
120 |
405 |
260 |
140 |
16 |
25 |
20 |
10 |
6.5 |
Bigx5, smallx4 |
|
WTFTG.4070 |
BFW-40.5/100A-4L |
650 |
525 |
125 |
480 |
260 |
140 |
16 |
25 |
20 |
10 |
6.5 |
Bigx6, smallx5 |
